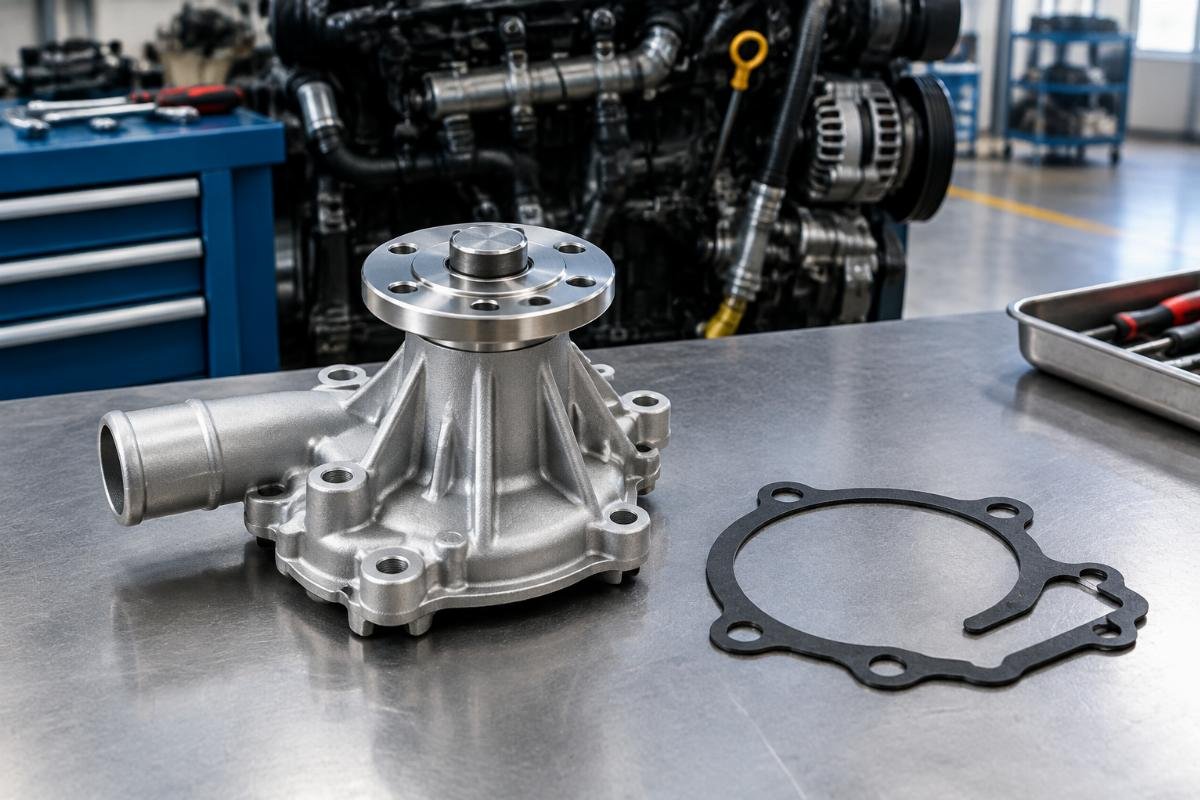

Kubota V2203 Water Pump – Scheduled Maintenance

Fleet Stocking Strategy — Kubota V2203 water pump service part maintenance planned ahead keeps KX151 and KH-101 units running without emergency teardowns

Technical Specifications

Application Suitability

Why Reactively Buying This Part Costs More Than the Part Itself

A planned Kubota V2203 water pump service part maintenance schedule prevents cascading engine damage that a reactive swap never addresses.

I have watched fleet operators in the Yangtze Delta region lose entire engines because a simple weep was ignored until overheating warped the cylinder head. The pump is a fraction of the repair bill once thermal damage spreads to pistons and liners. Teams that wait for failure end up paying for machining, gasket sets, and extended machine downtime that proper scheduling would have avoided entirely. [NEED_CITE: diesel engine thermal damage progression from cooling system neglect]

Where This Pump Sits in Your Machine’s Service Life

The Kubota V2203 water pump service part maintenance window typically aligns with the second or third major service interval on excavators like the KX151 and loaders such as the KH-101. At this stage, the shaft seal shows early wear and coolant flow begins to decline before any dashboard warning appears. Catching it here means a straightforward swap during a scheduled teardown rather than an emergency roadside pull.

Recognizing the Signals Before Catastrophic Failure

Coolant seeping from the weep hole is the first reliable indicator that internal seals are losing their grip. Bearing noise at idle and uneven temperature readings across the block point to impeller degradation or shaft play. When these signs appear on multiple machines in a fleet, it signals a systemic pattern worth building inventory around rather than treating each failure as an isolated event. [NEED_CITE: cooling system failure symptom progression in compact diesel engines]

Reading the Specifications That Matter in the Field

The high-silicon aluminum alloy impeller resists cavitation erosion that eats through softer castings over thousands of heat cycles. The dual-lip NBR shaft seal with stainless steel spring loading maintains contact pressure even as the shaft develops slight runout, extending the window between first seepage and active leakage. The MLS gasket with Viton coating handles the thermal expansion mismatch between the pump housing and engine block, which is where cheaper single-layer gaskets typically fail. Housing tolerance at ±0.05 mm ensures the impeller-to-volute clearance stays within design parameters for consistent flow across the operating speed range up to 3,600 rpm.

The Compounding Cost of Skipping Preventive Stock

Running a fleet without spare pumps on hand means every failure triggers an expedited order, premium freight, and a machine sitting idle while you wait. On rental equipment, that idle time directly erodes utilization rates and pushes customers toward competitors. Worse, operators sometimes limp a weeping pump through a job site rather than shut down, turning a seal replacement into a cylinder head rebuild by end of week. [NEED_CITE: fleet utilization losses from unplanned cooling system downtime]

Why Sourcing This Component Through Our Operation Makes Sense

We produce selected cooling system lines in our own facility and source the remainder from ISO-certified partners, so every pump carries the same warranty terms whether it rolls off our line or a qualified partner’s. Eight product categories under one account mean your V2203 pump ships alongside thermostats, hoses, and belt kits without coordinating separate suppliers. Minimum order is one piece, so you can stock precisely what your fleet profile demands. Our Guangzhou warehouse holds common items for fast dispatch, and our technical team verifies cross-reference numbers including superseded variants before anything ships. Sample supply lets you confirm fitment on a single machine before committing to fleet-wide quantities.

Documentation & Verification

• Commercial invoice listing each Kubota V2203 pump with engine and machine compatibility noted
• Cross-reference sheet mapping superseded numbers (reference only) to current identifiers
• Dimensional inspection record covering housing tolerance and impeller clearance
• Warranty terms covering manufacturing defects for 3–12 months from dispatch
• Packing photographs showing anti-rust coating and protective foam before crate sealing
• HS code and customs documentation support for cross-border fleet supply chains

Service Interval & Stocking Guidance

• Schedule pump inspection at every major service and replacement by 2,500 hours or visible weep
• Check weep hole, shaft play, and bearing noise during routine coolant system walkthroughs
• Stock one pump per three to five Kubota V2203-powered machines in active fleet rotation
• Store sealed units flat in dry conditions away from direct sunlight to preserve gasket integrity
• Rotate shelf stock on a first-in-first-out basis to keep elastomer seals within serviceable age

Planning Your Fleet’s Next Cooling System Overhaul

Provide your machine models, engine hours, and current service schedule so we can map out which Kubota V2203 water pump variants your fleet requires and suggest stocking quantities that match your maintenance cadence.

Frequently Asked Questions

Q: How often should the V2203 water pump be replaced under normal duty cycles?
A: Most fleet maintenance programs schedule inspection at every major service interval and plan replacement once weep hole seepage appears or around 2,500 operating hours. Dust-heavy environments like quarry and demolition sites may accelerate seal wear, so monitoring coolant levels and temperature trends between services helps refine the interval for your specific conditions.

Q: What symptoms indicate the pump is nearing end of service life?
A: Coolant traces around the weep hole, a faint grinding noise at idle suggesting bearing wear, and gradually rising operating temperature under load all point to advancing pump degradation. Addressing these signals during a planned service window avoids the far costlier consequences of overheating and cylinder head damage.

Q: Should I replace the thermostat and belts at the same time?
A: Replacing the thermostat, drive belts, and radiator cap during the same service window as the pump maximizes the value of the teardown labor and prevents adjacent component failures from forcing a repeat disassembly weeks later. It is a standard practice for fleet-level Kubota V2203 water pump service part maintenance planning.

Q: How many spares should a fleet operator keep on hand?
A: A common approach is one spare pump for every three to five Kubota V2203-equipped machines in active rotation, adjusted upward if your units operate in abrasive or high-temperature environments. This buffer covers predictable failures without tying up excessive inventory capital.

Q: Can I still get reliable supply for older Kubota machine models?
A: We maintain cross-reference coverage for superseded part numbers and continue supplying pumps for older platforms like the R510 old type and early KH-series machines. Verifying your engine serial number and machine model at inquiry stage ensures we match the correct variant for your specific build.
